Tanques para Aguada

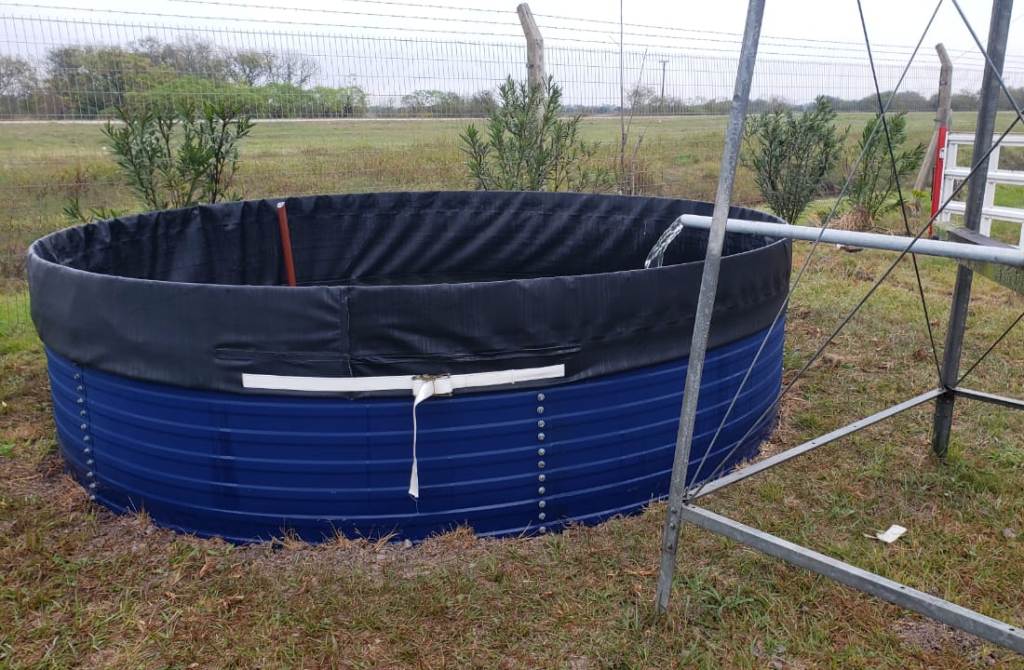

Tanques Autralianos y Bebederos

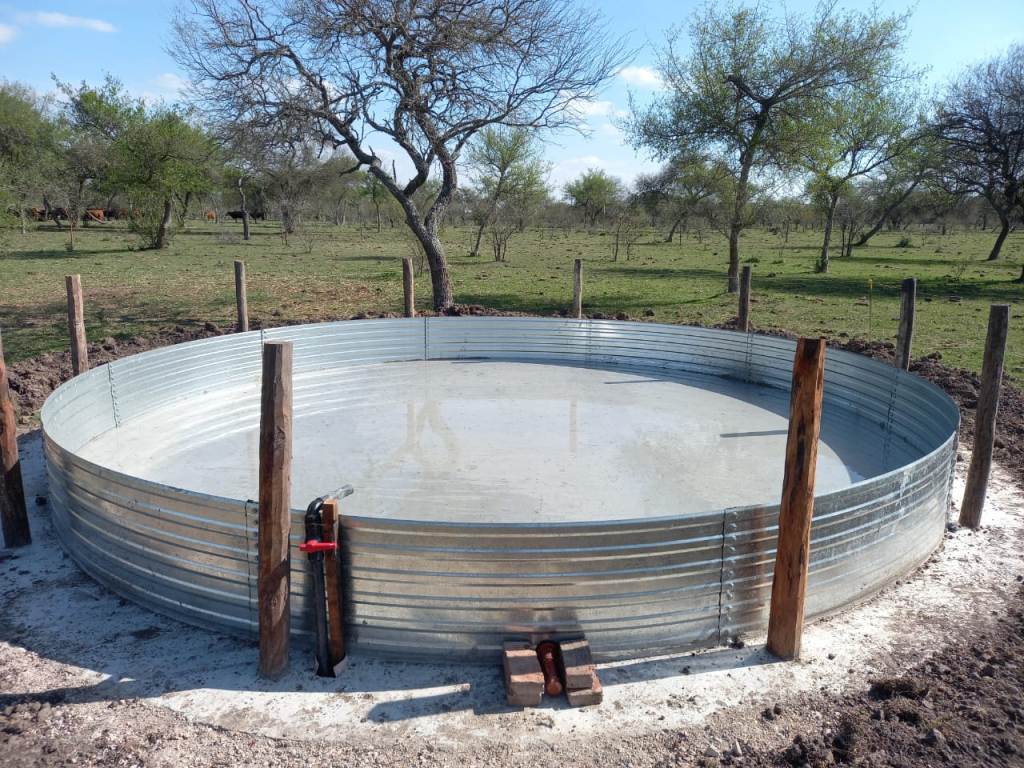

Los tanques australianos y bebederos Surgente están construidos en chapa galvanizada N° 18 de alta calidad y cuyas dimensiones de chapas (2 mts x 1 mt australianos y 2 mts x 0,61 mts bebederos) favorecen notablemente el traslado, manejo y la instalación de estos, por su menor peso y tamaño.
<div class="cascading-images-wrapper">
<div class="cascading-images position-relative">
<img src="img/blog/default/blog-11.jpg" class="appear-animation" width="500" alt="" data-appear-animation="fadeInUpShorter" data-appear-animation-duration="600ms" data-plugin-options="{'accY': -300}" />
<div class="position-absolute w-100" style="top: 41%; left: -30%;">
<img src="img/blog/default/blog-7.jpg" class="appear-animation" width="500" alt="" data-appear-animation="fadeInRightShorter" data-appear-animation-delay="300" data-appear-animation-duration="600ms" data-plugin-options="{'accY': -300}" />
</div>
<div class="position-absolute w-100" style="top: 75%; left: 30%;">
<img src="img/blog/default/blog-5.jpg" class="appear-animation" width="500" alt="" data-appear-animation="fadeInLeftShorter" data-appear-animation-delay="600" data-appear-animation-duration="600ms" data-plugin-options="{'accY': -150}" />
</div>
</div>
</div>
<div class="cascading-images-wrapper">
<div class="cascading-images position-relative">
<div class="overflow-hidden">
<img src="img/blog/default/blog-11.jpg" class="appear-animation" width="500" alt="" data-appear-animation="maskUp" data-appear-animation-duration="600ms" />
</div>
<div class="position-absolute overflow-hidden w-100" style="top: 41%; left: -30%;">
<img src="img/blog/default/blog-7.jpg" class="appear-animation" width="500" alt="" data-appear-animation="maskRight" data-appear-animation-delay="300" data-appear-animation-duration="600ms" />
</div>
<div class="position-absolute overflow-hidden w-100" style="top: 75%; left: 30%;">
<img src="img/blog/default/blog-5.jpg" class="appear-animation" width="500" alt="" data-appear-animation="maskLeft" data-appear-animation-delay="600" data-appear-animation-duration="600ms" />
</div>
</div>
</div>

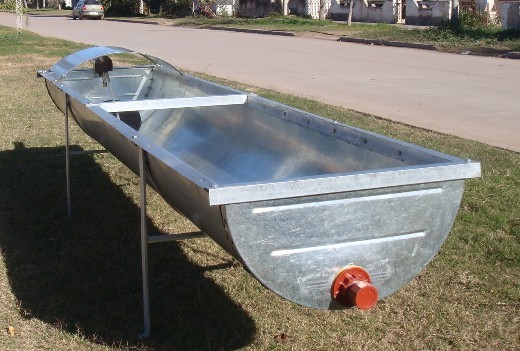

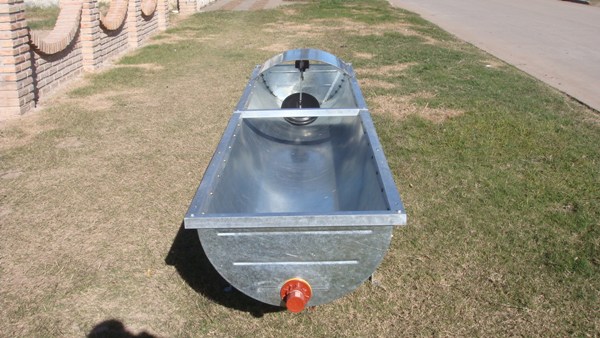

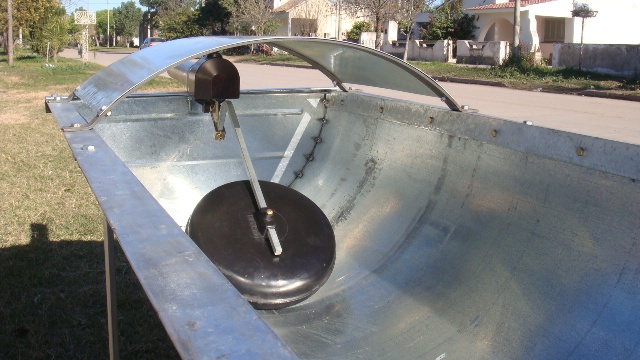

Bebederos media caña

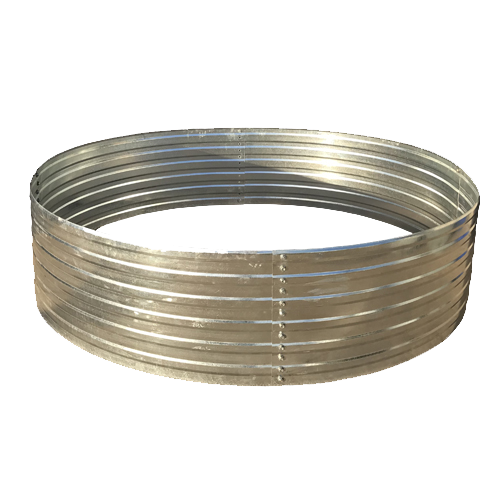

Bebederos tipo media caña para todo tipo de animales, fabricados en chapa lisa galvanizada N° 18 al igual que los tanques australianos.
Incluye marco perimetral de perfil ángulo galvanizado, patas con travesaños y cubreflotante reforzado.
Tabla de medidas de Tanques Australianos y bebederos
N° |
BEBEDEROS |
AUSTRALIANOS |
|
CHAPAS |
DIAMETRO |
LITROS |
LITROS |
4 |
2.42 |
2860 |
4700 |
5 |
3.032 |
4480 |
7340 |
6 |
3.63 |
6450 |
10570 |
| 7 |
4.24 |
8750 |
14380 |
8 |
4.84 |
11460 |
18780 |
9 |
5.45 |
14500 |
23770 |
10 |
6.05 |
17900 |
29350 |
11 |
6.66 |
21660 |
35510 |
12 |
7.26 |
25780 |
42260 |
13 |
7.87 |
30260 |
49600 |
14 |
8.47 |
35090 |
57530 |
15 |
9.08 |
40280 |
66040 |
16 |
9.68 |
45830 |
75140 |
17 |
10.29 |
51740 |
84820 |
18 |
10.89 |
58010 |
95100 |
19 |
11.50 |
64630 |
105950 |
20 |
12.10 |
71610 |
117400 |
21 |
12.71 |
78960 |
129430 |
22 |
13.31 |
86650 |
142060 |
23 |
13.92 |
94710 |
155260 |
24 |
14.52 |
103100 |
169060 |
25 |
15.29 |
111900 |
183440 |
26 |
15.9 |
121030 |
198410 |
27 |
16.51 |
130520 |
213960 |
28 |
17.12 |
140360 |
230110 |
29 |
17.73 |
150570 |
246840 |
30 |
18.34 |
161100 |
264150 |
31 |
18.96 |
172050 |
282060 |
MODELOS

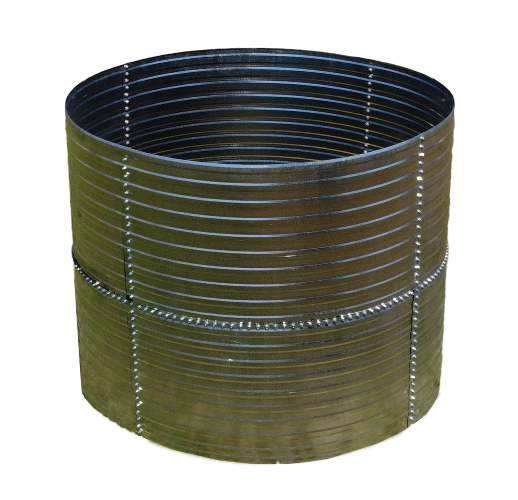

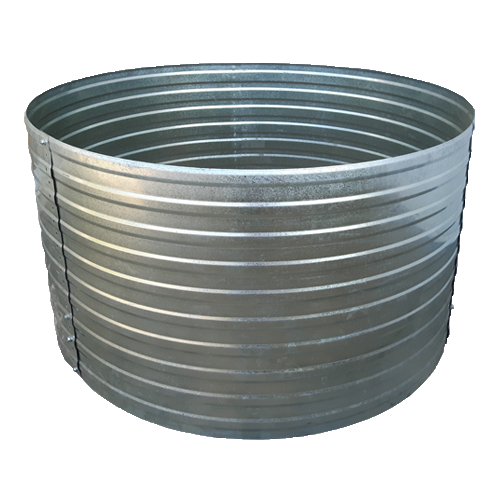

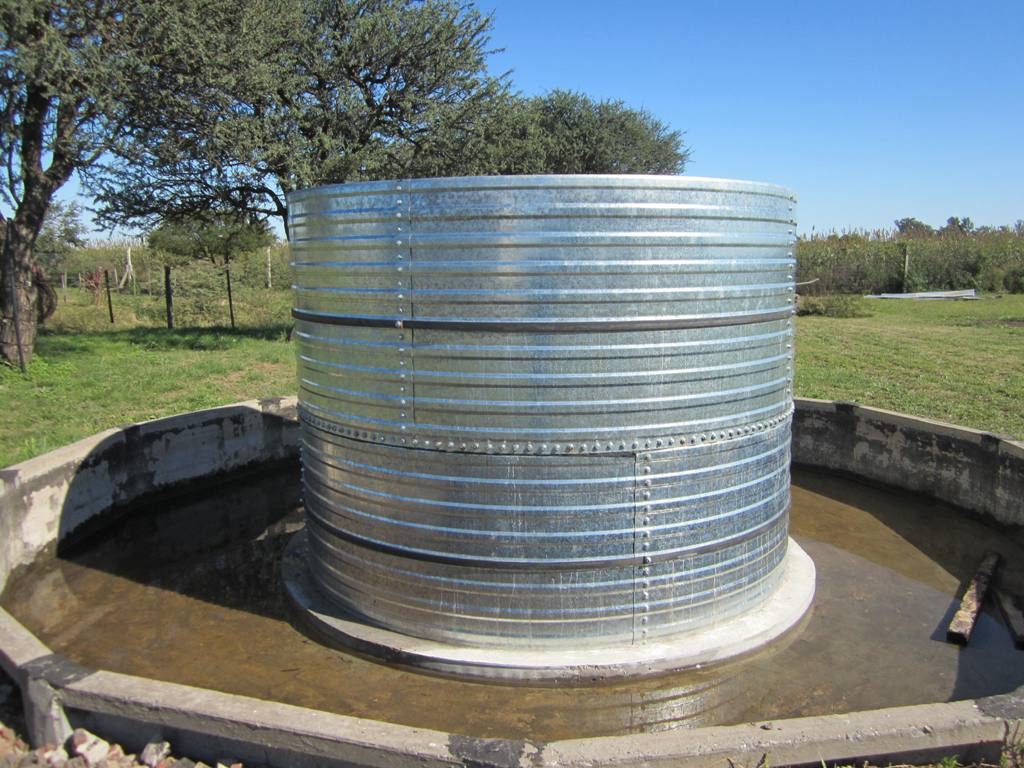

Tanque australiano
Bebedero media caña
Tanque australiano
Bebedero media caña
